New feature! TRestMetadataPlot class added for metadata members drawing

New TRestMetadataPlot class has been added to the framework. It is used in a very similar way to the TRestAnalysisPlot class, but it is used to create graphs with points extracted from metadata members.

We can assign to a <plot any metadata member as an xVariable, and each graph inside the plot will be associated to a corresponding yVariable.

We can access any metadata member from any metadata class that it is accessible to TRestRun.

Simply specifying the format TRestMetadataClass->fDataMember.

An example has been also uploaded to the repository: examples/metadataPlot.rml.

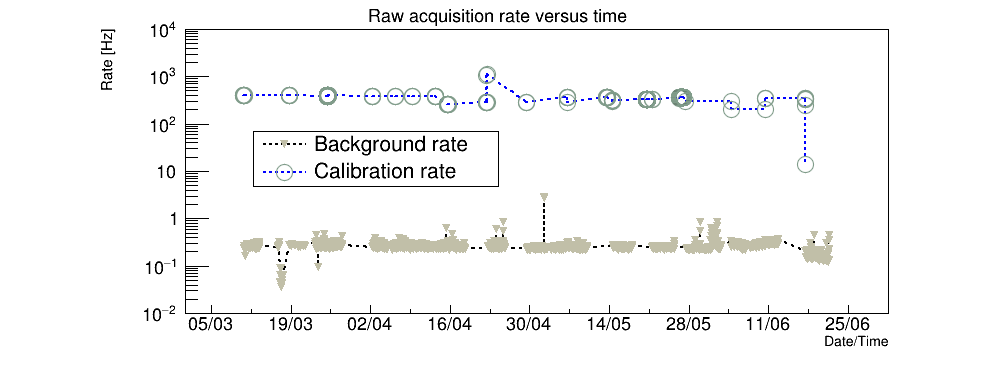

Using TREX-DM data the example file generates the following evolution plot with the data found inside the class TRestSummaryProcess from thousands of files of data.
