Readout problem: pixels with X=nan and Y=nan

RESTFramework
1

REST version : v2.2.11

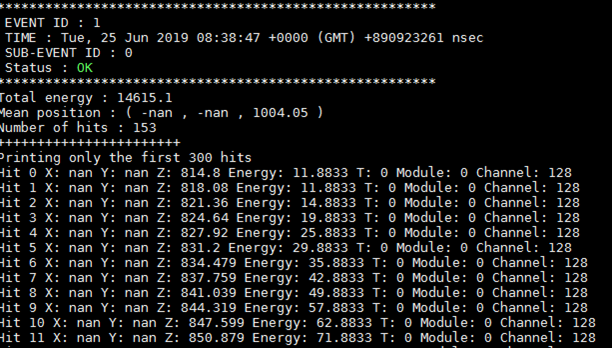

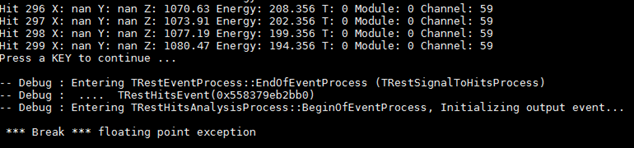

When trying to analyse real data files (.aqs), I get pixels with X=nan and Y=nan. So during the hitsAnalysis process I get:
…

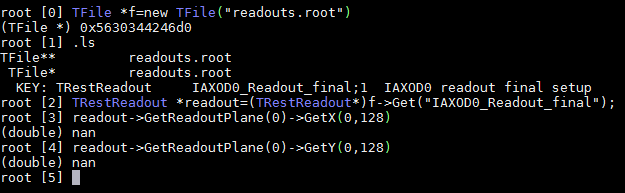

If I enter the class readout I also get nan for X and Y:

I attach the relevant files.
Any Thoughts?

Regards,
Cristina.

readouts.root (414.3 KB)
readouts_IAXOD0_updated.rml (11.4 KB)

2

Hi Cristina, thanks for posting.

This problem is related to the fact that your readout rotation is 45 degrees, while actually TRestReadoutPlane::GetX,Y methods were only considering modules with 0, 90, 180, 270 degrees.

I have committed a quick fix in branch v2.2.11_dev that should solve that problem.

In any other scenario than 0, 90,180,270 we consider non-inversion. However, not sure about the conventions to consider in the re-definition of X and Y strip using rotations. Obvious for 90 degrees, ok. But what we do in intermediate steps? @nkx

On the other hand, I wonder if it is really necessary to have a 45 degrees rotated readout in IAXO-D0? @CMargalejo, @Elisa and @luzon
