TRestG4Event::GetFirstPositionInVolume not working correctly?

lobis · July 12, 2019, 12:40pm

REST version : v2.2.11

Hello,

I am using the method TRestG4Event::GetFirstPositionInVolume(volume_id) to draw in 3D the points where the particle enters my volume, in my case a muon veto consisting of a rectangle on top of the detector.

I have found that sometimes I get back a position way inside the volume, even though when viewing individual events the step size seems to be very small inside the veto.

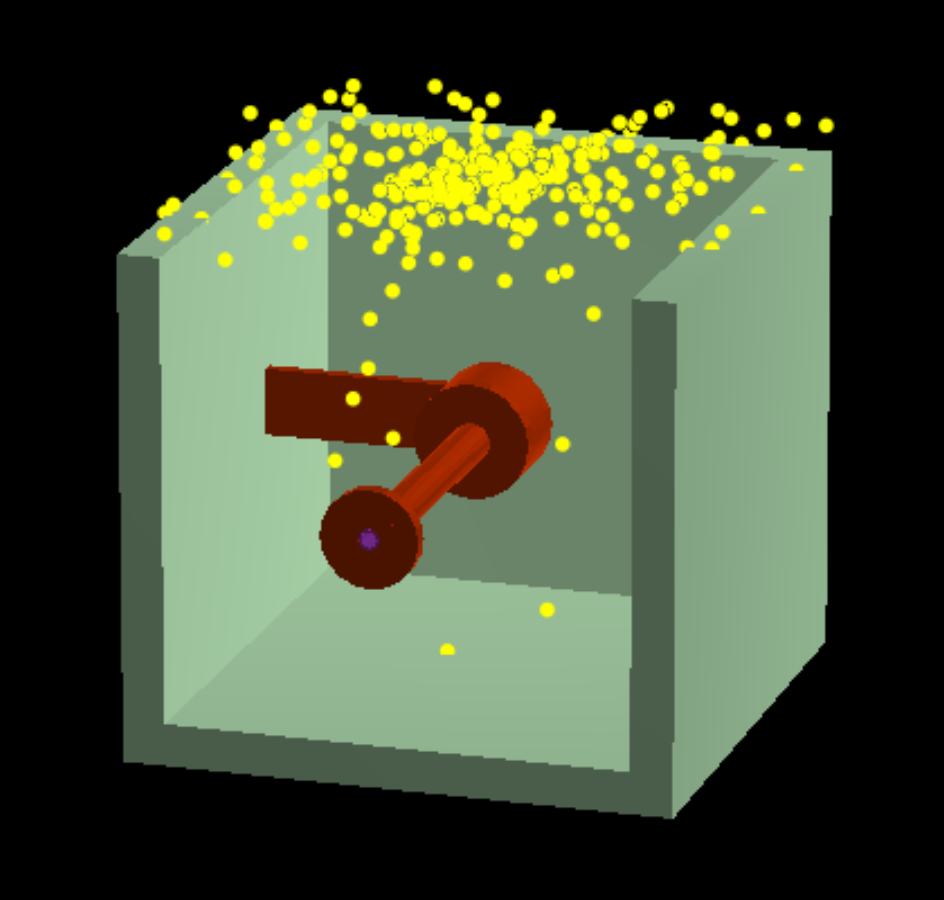

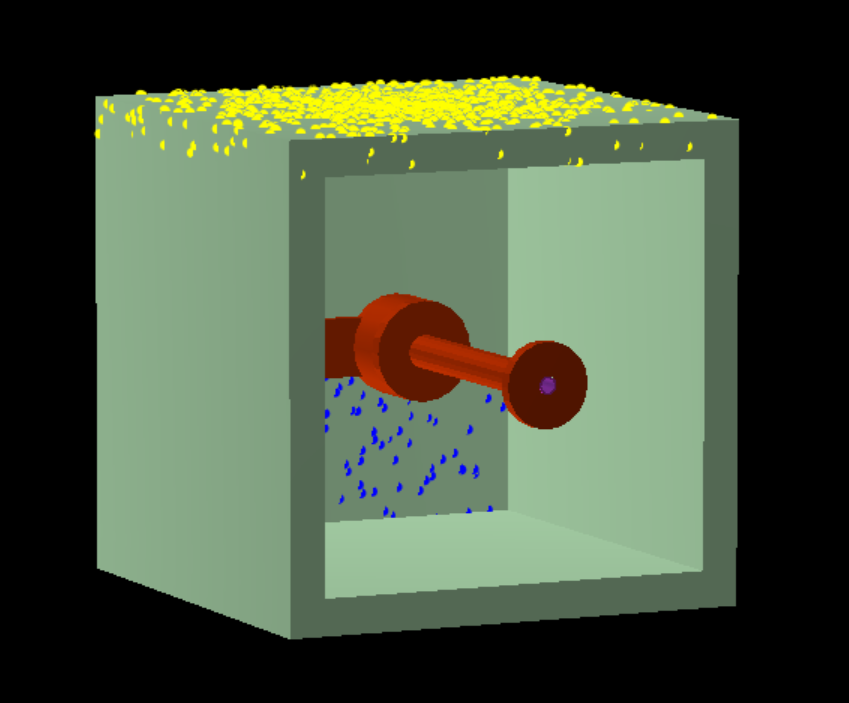

Also on some instances I get a position way outside the veto, which is the reason I am making this post. This can be seen in the images below. I have gotten all my 3D points as position = event->GetFirstPositionInVolume(3); where 3 is the id of the top veto.

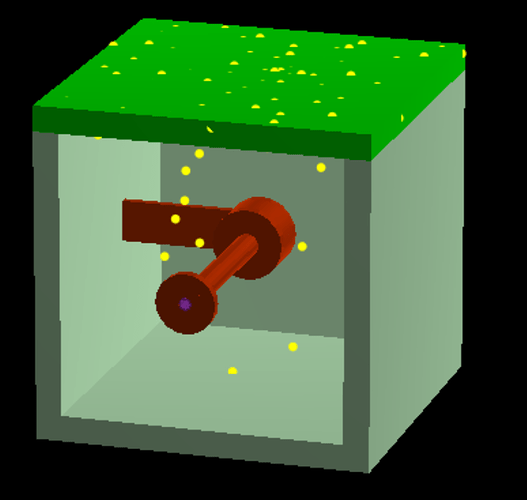

The top rectangle is the volume corresponding to the veto.

jgalan · July 12, 2019, 2:55pm

Hi Luis, looking to the methods GetFirstPositionInVolume it seems strange that you get hits outside the volume.

It would be good if you could paste in this post the result of PrintEvent in one of those events that produce the observable outside the volumeID = 3. To determine manually the hit that should be returned.

The top rectangle, volId=3, it is a simple primitive in your GDML definition, or it is the result of more complex volume boolean operations?

lobis · July 14, 2019, 4:46pm

I recreated the simulation and know the positions I get are within bounds. There seemed to be a problem with that simulation in particular

index 230 event ID: 557222 Y pos in vol: 284.113 E dep in vol: 13804.4
index 232 event ID: 562909 Y pos in vol: 311.478 E dep in vol: 11182.2
index 233 event ID: 563658 Y pos in vol: 298.302 E dep in vol: 10847.8
index 240 event ID: 570929 Y pos in vol: 290.13 E dep in vol: 9695.85
index 241 event ID: 571037 Y pos in vol: 309.686 E dep in vol: 10210.2
index 242 event ID: 574147 Y pos in vol: 275 E dep in vol: 10642.3
index 243 event ID: 582437 Y pos in vol: 298.091 E dep in vol: 10438.4
index 244 event ID: 587826 Y pos in vol: 275 E dep in vol: 8815.01
index 245 event ID: 597219 Y pos in vol: 317.53 E dep in vol: 10213.8
index 247 event ID: 597973 Y pos in vol: 136.503 E dep in vol: 0.00212024
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:248, badread=1, nerrors=1, basketnumber=84
index 248 event ID: 597973 Y pos in vol: 136.503 E dep in vol: 0.00212024
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:249, badread=1, nerrors=2, basketnumber=84
index 249 event ID: 598317 Y pos in vol: 136.503 E dep in vol: 12646.1
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:250, badread=1, nerrors=3, basketnumber=84
index 250 event ID: 599164 Y pos in vol: 136.503 E dep in vol: 10376.8
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:251, badread=1, nerrors=4, basketnumber=84
index 251 event ID: 601480 Y pos in vol: 136.503 E dep in vol: 10079.5
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:252, badread=1, nerrors=5, basketnumber=84
index 252 event ID: 606522 Y pos in vol: 136.503 E dep in vol: 9295.68
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:253, badread=1, nerrors=6, basketnumber=84
index 253 event ID: 611994 Y pos in vol: 136.503 E dep in vol: 10376.9
Error in <TBasket::Streamer>: The value of fNbytes is incorrect (-698) ; trying to recover by setting it to zero
Error in <TBranchElement::GetBasket>: File: /home/lobis/gitlab/IAXOD0-REST/simulations_data/cosmic_muons/analysis/RUN_ArIso_wall-4000-n1M_lobis_v2.11_0.root at byte:242690348, branch:fTrack.fTrack_ID, entry:254, badread=1, nerrors=7, basketnumber=84
index 254 event ID: 615212 Y pos in vol: 136.503 E dep in vol: 11288.2
index 255 event ID: 616544 Y pos in vol: 275 E dep in vol: 9238.07
index 256 event ID: 624029 Y pos in vol: 313.25 E dep in vol: 29103
index 258 event ID: 625022 Y pos in vol: 322.503 E dep in vol: 13056
index 259 event ID: 625104 Y pos in vol: 315.214 E dep in vol: 18948.1
index 261 event ID: 628843 Y pos in vol: 275 E dep in vol: 9026.73
index 263 event ID: 633895 Y pos in vol: 276.991 E dep in vol: 19360.4
index 264 event ID: 634105 Y pos in vol: 309.346 E dep in vol: 20156
index 266 event ID: 638497 Y pos in vol: 324.144 E dep in vol: 12532.1
index 269 event ID: 646914 Y pos in vol: 320.688 E dep in vol: 11394.7
index 270 event ID: 653180 Y pos in vol: 315.507 E dep in vol: 12576.6
index 271 event ID: 670345 Y pos in vol: 279.878 E dep in vol: 10855.3
index 272 event ID: 670409 Y pos in vol: 316.106 E dep in vol: 11258.6
index 273 event ID: 674354 Y pos in vol: 276.775 E dep in vol: 11943.6

When iterating over the events I got this warning which I assumed was normal but I guess its a sign that the file got corrupted somehow. The correct simulation was produced with a newer version of REST than the corrupted one so I assume if there was some problem in the code it got fixed by some commit, or maybe its just bad luck.

Anyway after repeating the simulation I got all my first positions in volume within correct values.

However there is something that still puzzles me:

The veto is a rectangular prism situated at y=300 with a width of 50 so compatible y values would be 275-325. I have checked and I got all the y component of the first position in volume within this value but I have seen that instead of getting y’s very close to 325 (muons enter from the top of the veto) I get a more or less uniform distribution of values within 275 and 325, I get many values at exactly 275.

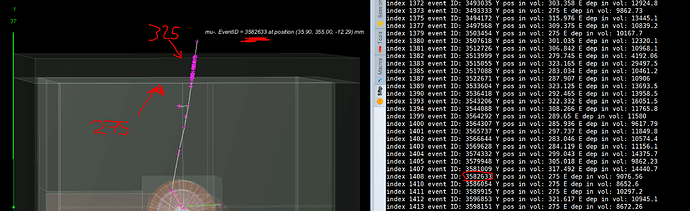

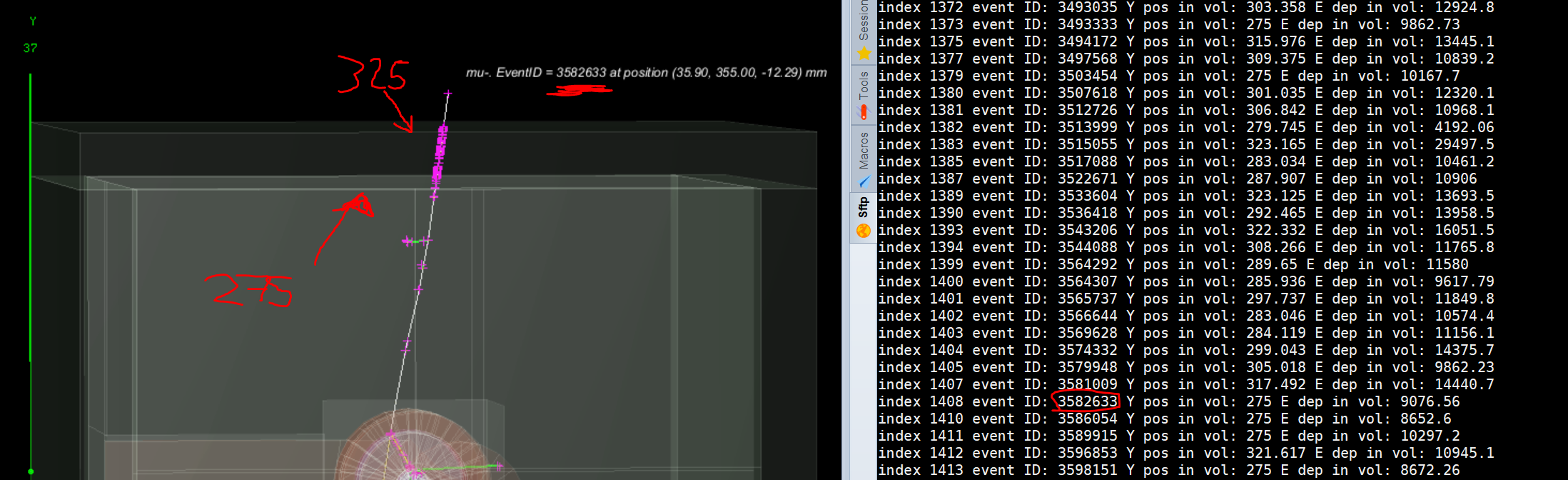

I have checked manually one of this events and I can visually see that the first position where energy was deposited in the veto is close to 325, so I have no idea why I get back the value 275.

jgalan · July 15, 2019, 5:55am

The method TRestG4Event::GetFirstPositionInVolume returns the first registered track that deposits energy on that volume. It might happen that there are several tracks, due to secondaries, and the first track in the event is around 275? Other tracks are then ignored.

I guess to understand it we need to see the details using PrintEvent on that particular event.

lobis · July 15, 2019, 7:34am

*******************************************************
 EVENT ID : 3582633
 TIME : Thu, 01 Jan 1970 00:00:00 +0000 (GMT) +        0 nsec
 SUB-EVENT ID : 0
 Status : OK
*******************************************************
Total energy : 5.611e+05 keV
Sensitive volume energy : 38.49 keV
Source origin : (35.9,355,-12.29) mm
Source 0 Particle name : mu-
Source 0 direction : (-0.138,-0.9902,0.02115)
Source 0 energy : 1.377e+06 keV
Number of active volumes : 10
Active volume 0 has been stored.
Total energy deposit in volume 0 : 38.49 keV
Active volume 1 has been stored.
Total energy deposit in volume 1 : 0 keV
Active volume 2 has been stored.
Total energy deposit in volume 2 : 0 keV
Active volume 3 has been stored.
Total energy deposit in volume 3 : 9077 keV
Active volume 4 has been stored.
Total energy deposit in volume 4 : 1.149e+04 keV
Active volume 5 has been stored.
Total energy deposit in volume 5 : 0 keV
Active volume 6 has been stored.
Total energy deposit in volume 6 : 0 keV
Active volume 7 has been stored.
Total energy deposit in volume 7 : 5.366e+05 keV
Active volume 8 has been stored.
Total energy deposit in volume 8 : 0 keV
Active volume 9 has been stored.
Total energy deposit in volume 9 : 3827 keV
---------------------------------------------------------------------------
Total number of tracks : 16109
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
